Agent Observability: Six Signals That Reveal Whether Your AI Agent Is Correct, Reliable, and Cost-Effective

AI agents are nondeterministic. The same input can produce different outputs across runs, and a system that passes testing can silently degrade in production. Gartner predicts that over 40% of agentic AI projects will be canceled by the end of 2027, citing escalating costs, unclear business value, and inadequate risk controls (Gartner). This is an industry forecast, not a measurement of agent reliability, but it reflects a real pattern: teams often build agent behavior before they build the infrastructure to observe it, govern it, and pay for it predictably (Diagrid).

Conventional monitoring focuses mainly on availability, errors, and performance. Agent observability adds a different layer: semantic quality, workflow completion, tool-use correctness, and business outcomes. This article defines six signals every team should wire before deployment, not after the first incident.

Why Conventional Monitoring Is Necessary but Not Sufficient

Conventional Application Performance Monitoring (APM) tools and distributed tracing capture request and response health, latency, error rates, and service dependencies. Modern APM platforms can trace requests across distributed services, and these capabilities remain essential for any production system.

The distinction is that agent failures are often semantic, not operational. No exception is thrown. The endpoint returns HTTP 200. But the answer is wrong, a required step was skipped, or a tool returned stale data that the agent accepted without question. Berkeley AI Research describes this shift as moving from standalone models to compound systems built from multiple interacting components, including model calls, retrievers, and external tools (Berkeley AI Research). In practice, Berkeley AI Research, citing Databricks data, reports that 60% of large language model (LLM) applications use retrieval and 30% use multi-step chains (Berkeley AI Research).

Each interaction between components introduces a new failure surface. Conventional monitoring tells you the engine is running. Agent observability tells you the car is going the right direction.

What to Monitor: Six Core Signals

The six signals are: task success and output quality, execution and tool-use health, latency and unit economics, user and operator feedback, drift and regressions, and escalation and control effectiveness. Together they cover whether the agent produces correct results, whether it executes its workflow reliably, whether it stays economical, whether humans experience it as helpful, whether quality holds up over time, and whether the agent hands off the right cases. Figure 1 summarizes what each signal reveals and how to measure it.

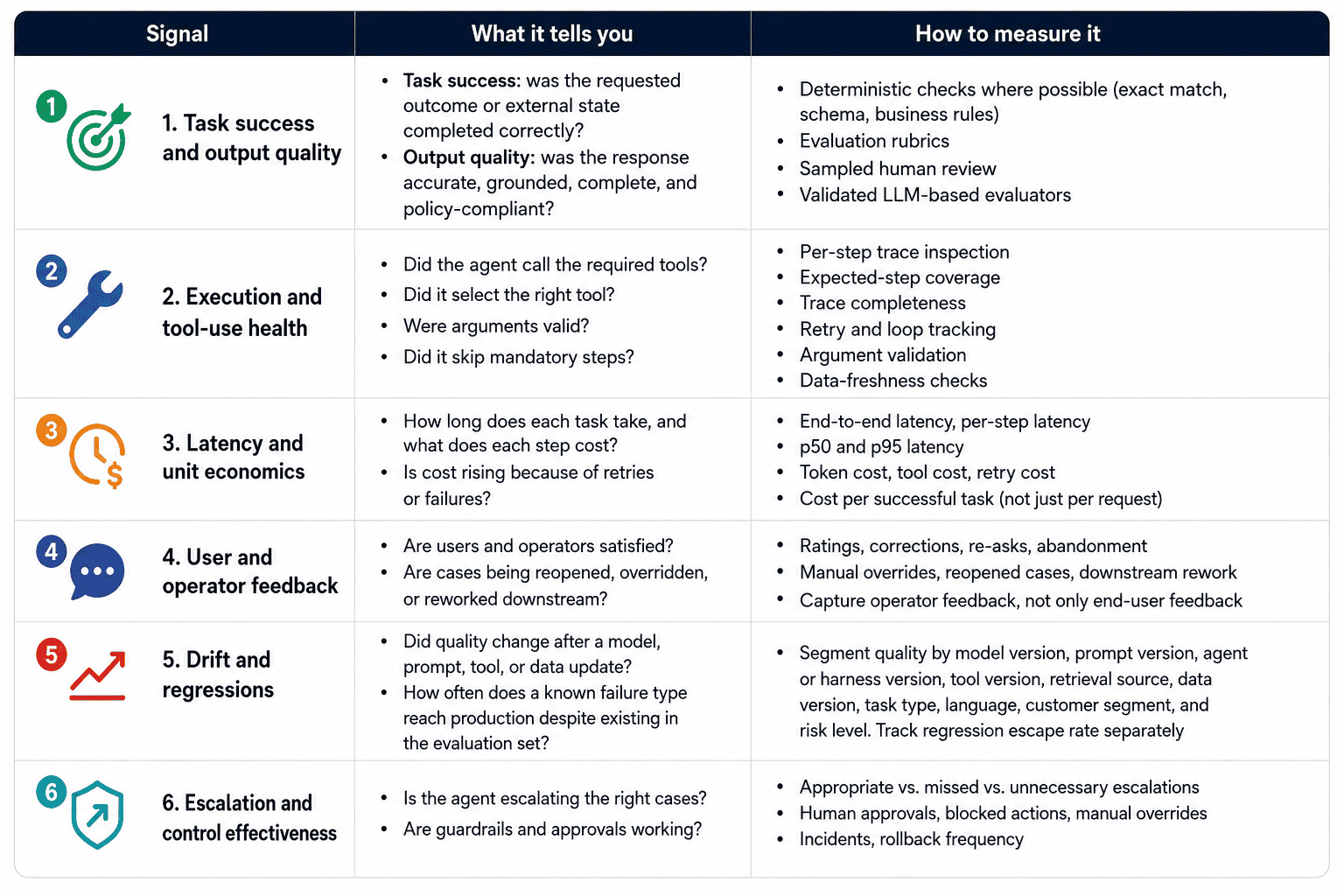

Figure 1. The six core signals for agent observability: what each measures and how to capture it.

Multi-step agents can fail even when individual model and tool calls appear healthy, because errors accumulate across the workflow. To illustrate: if each step in a 20-step workflow has an independent 95% success rate, the end-to-end success rate is approximately 36%. This is an illustrative calculation, not a measured figure. Real failure rates depend on task complexity, tool reliability, and error recovery. But it shows why per-step trace inspection and expected-step coverage matter as much as output quality checks. A tool can return successfully while the agent still skips a mandatory step, selects the wrong tool, or passes invalid arguments.

No single signal tells the full story. Output quality can look stable while cost silently triples because of hidden retry loops. Cost per request can appear flat while the cost per successful task climbs, because more requests are failing and being retried. A low escalation rate is not automatically positive, as the agent might be missing the cases it should escalate. The six signals are designed to be read together, segmented by task type, risk level, and customer cohort, not averaged into a single global score.

For task success and output quality, a layered approach works best. Deterministic checks validate answers that can be verified exactly: schema compliance, business rules, exact match. Evaluation rubrics handle open-ended outputs. Sampled human review provides ground truth on a representative subset. Validated LLM-based evaluators scale the process across higher volumes. For evaluating agents specifically, benchmarks such as tau-bench provide structured task sets that test whether an agent can use tools correctly, comply with domain-specific policies, and complete tasks consistently across repeated trials (Yao et al.). Huang et al.'s 2025 survey in ACM Transactions on Information Systems provides a complementary taxonomy of hallucination causes, detection methods, and mitigation approaches for output-quality evaluation (Huang et al.).

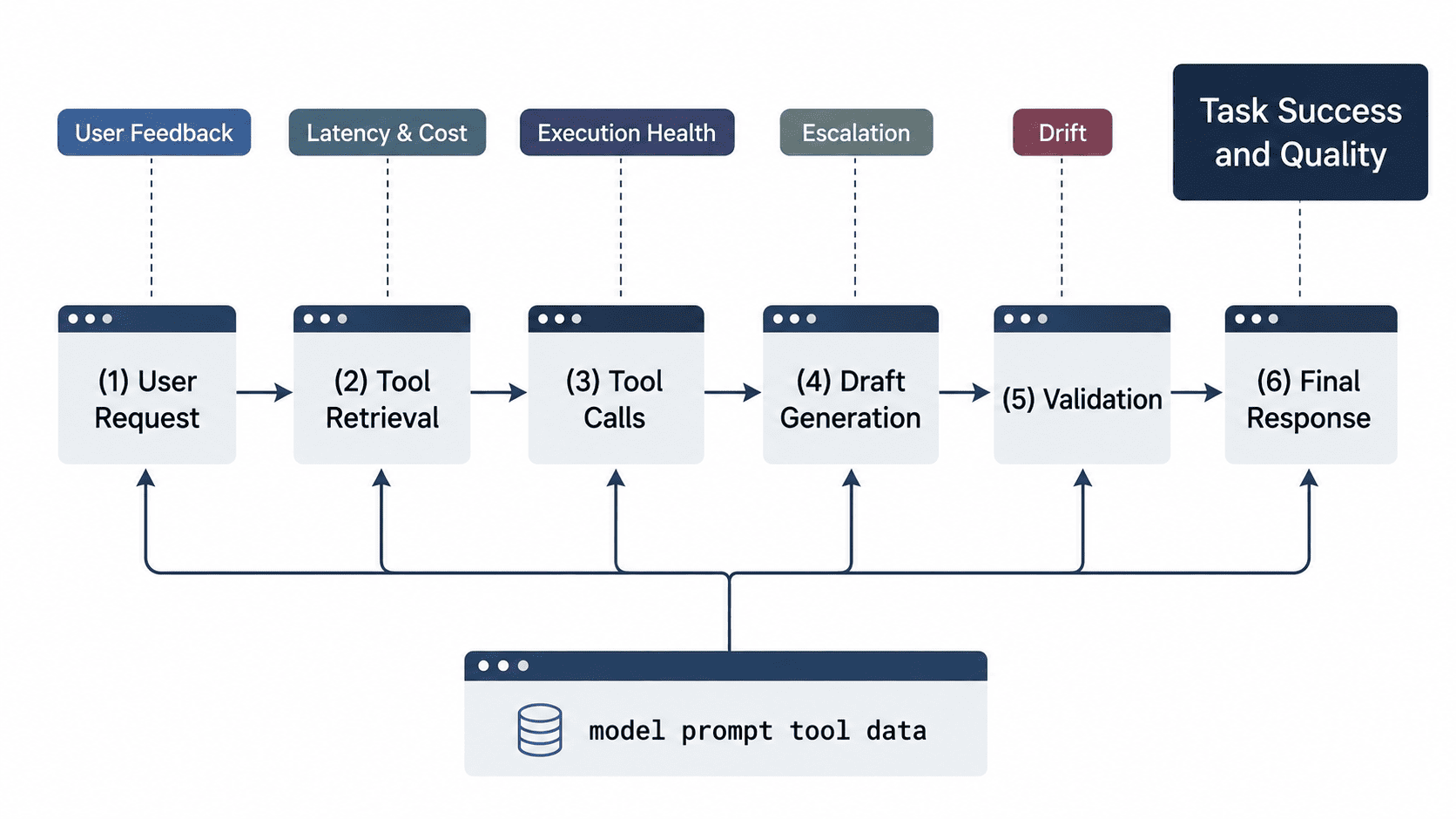

Figure 2. AI Agent Execution Pipeline and Monitoring Signals used throughout the agent workflow for context and evaluation.

From Signals to Action

Metrics without thresholds are dashboards. The goal is to define what triggers action, and to segment those thresholds rather than applying one global number to every request.

Thresholds should be segmented by task type, risk level, language, workflow, and customer segment. A billing question and a general frequently asked question (FAQ) can have different quality bars. A high-risk action such as issuing a refund and a low-risk action such as looking up a policy need different escalation rules. Segmenting prevents one cohort's noise from masking another cohort's regression.

Each threshold should connect to a specific action:

• Investigate when an anomaly is detected.
• Sample for human review when quality is borderline.
• Increase approval requirements when risk level rises.
• Roll back a prompt or model change when a regression is detected.
• Disable a tool when it fails or is misused.
• Pause the workflow when an incident threshold is crossed.
• Update the evaluation set when a new failure pattern appears.

Pre-production evaluation and production monitoring feed each other. The National Institute of Standards and Technology (NIST) Generative AI Profile emphasizes governance, measurement, and ongoing risk controls for generative systems (NIST). Whether cases are added manually or through an evaluation platform, production failures should become regression tests for future deployments, and evaluation results should gate those deployments.

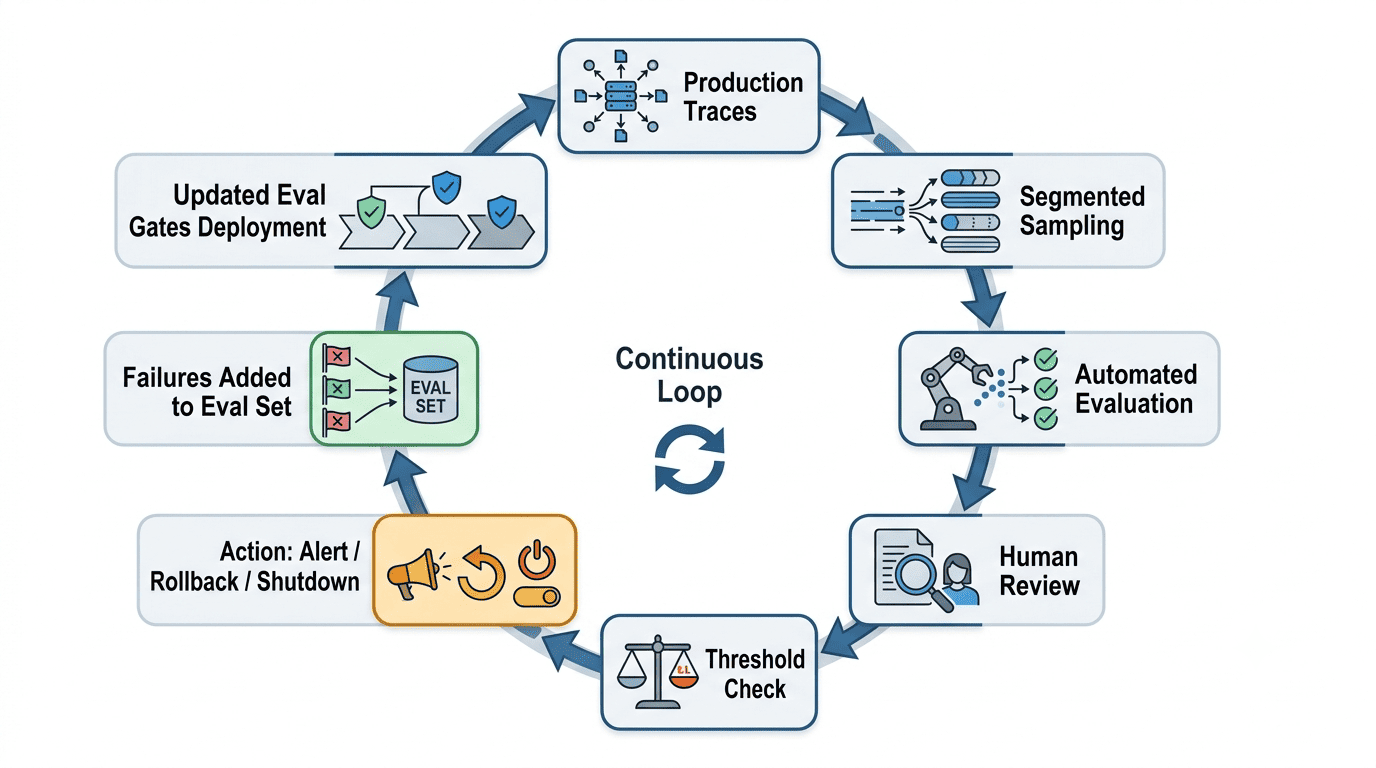

Figure 3. The monitoring feedback loop. Production traces feed segmented sampling, automated evaluation, and human review. Failures update the evaluation set, which gates the next deployment.

A Concrete Example

Consider a billing support agent that answers customer questions using a customer relationship management (CRM) tool and a billing-policy knowledge base.

A passing case requires three criteria: factual accuracy (amounts, dates, and account details are correct), billing-policy compliance (the answer follows current policy), and resolution completeness (the customer's question is fully addressed). The team scores a stratified weekly sample of 100 conversations against a fixed rubric, with a second reviewer on a 20% overlap subset for consistency.

All numbers below are illustrative.

Tool availability barely moves, but required CRM verification drops from 96% to 71%. Retries increase, cost per successful task more than triples, and task success falls. A simple tool-health check would have reported 97% availability and missed the problem entirely. The failure is not in the tool; it is in the step the agent stopped performing.

Root cause: a prompt change relaxed the verification instruction. Without expected-step coverage and per-step tracing, the team would have seen only "latency up, cost up" with no way to locate the cause.

Limitations and Controls

Observability reduces uncertainty. It does not prove correctness.

LLM-based evaluators and human reviewers can be wrong. User feedback is often sparse and self-selecting. A weekly sample can miss low-frequency but high-severity failures. No detection method catches everything, and false positives can erode trust in the alerting system if thresholds are not calibrated.

Privacy and access controls matter as much as detection quality. Prompts, tool inputs, and retrieved context may contain sensitive customer data, credentials, or internal documents. Define access control, retention policies, and redaction rules before logging production traffic, not after.

For high-risk workflows, human review should remain a visible checkpoint in the pipeline. Treating it as a fallback that only triggers when automation fails is a sign that the oversight and approval design is insufficient.

The Tooling Landscape

Organize by capability, not by product.

OpenTelemetry's evolving GenAI semantic conventions provide a vendor-neutral approach to representing model calls, agent operations, and tool interactions. Teams should record the convention version they implement because the specification continues to develop (OpenTelemetry). Platforms such as LangSmith, Langfuse, and Arize Phoenix provide dedicated LLM observability capabilities. Many teams start with structured logging and OpenTelemetry instrumentation before adopting a dedicated platform.

Conclusion

You cannot improve what you cannot measure, and with nondeterministic systems you cannot assume stability. For teams running a first pilot, the metrics that matter most are task success rate, cost per successful task, missed and unnecessary escalation rates, mean time to detect regressions, and the percentage of production failures converted into evaluation cases.

Start with the six signals, define segmented thresholds, and treat the evaluation set as a living artifact that grows with every production failure.

At Anovate, we build monitoring and evaluation paths into agent systems from the start, helping teams detect drift, regression, and silent failures before they become customer incidents.

References

1. OpenTelemetry. GenAI Semantic Conventions. https://github.com/open-telemetry/semantic-conventions

2. National Institute of Standards and Technology. Artificial Intelligence Risk Management Framework: Generative Artificial Intelligence Profile. NIST AI 600-1, July 2024. https://www.nist.gov/publications/artificial-intelligence-risk-management-framework-generative-artificial-intelligence

3. Zaharia, M., Khattab, O., et al. The Shift from Models to Compound AI Systems. Berkeley AI Research Blog, February 18, 2024. https://bair.berkeley.edu/blog/2024/02/18/compound-ai-systems/

4. Anthropic. Building Effective Agents. Anthropic Engineering, December 19, 2024. https://www.anthropic.com/engineering/building-effective-agents

5. Gartner. Gartner Predicts Over 40% of Agentic AI Projects Will Be Canceled by End of 2027. Press release, June 25, 2025. https://www.gartner.com/en/newsroom/press-releases/2025-06-25-gartner-predicts-over-40-percent-of-agentic-ai-projects-will-be-canceled-by-end-of-2027

6. Janakiram, J. Why AI Agents Fail in Production. Diagrid, June 2, 2026. https://www.diagrid.io/blog/why-ai-agents-fail-in-production

7. Yao, S., Shinn, N., Razavi, P., & Narasimhan, K. τ-bench: A Benchmark for Tool-Agent-User Interaction in Real-World Domains. arXiv:2406.12045, 2024. https://arxiv.org/abs/2406.12045

8. Huang, L. et al. A Survey on Hallucination in Large Language Models. ACM Transactions on Information Systems, 2025. https://dl.acm.org/doi/10.1145/3703155

9. Langfuse. Open-source LLM Engineering Platform. Documentation. https://langfuse.com/docs

10. Arize AI. Phoenix: AI Observability and Evaluation. Documentation. https://docs.arize.com/phoenix
